Box Truss Accessories (30x30cm n 40x40cm)

Box Truss Accessories (30x30cm n 40x40cm)

0 Review Add Your Review

Details

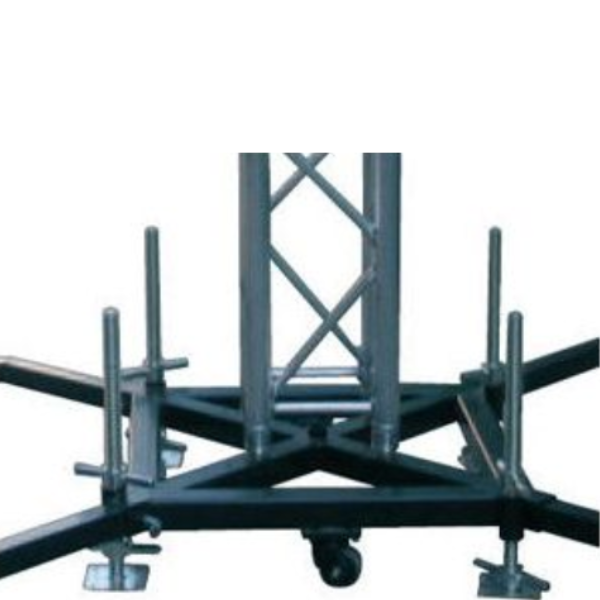

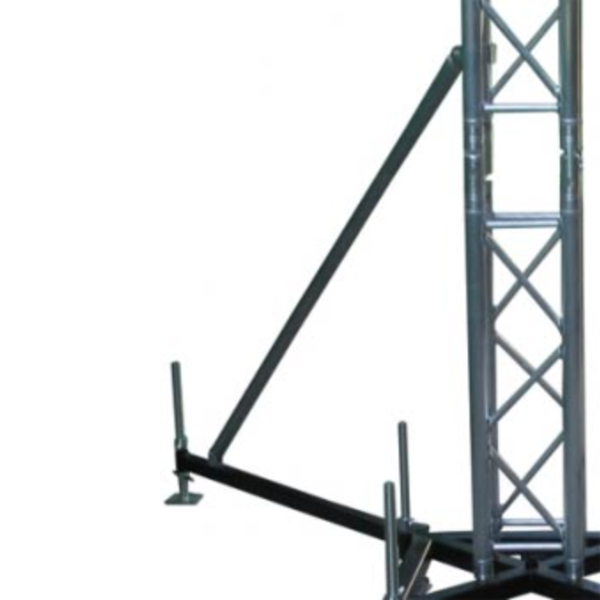

Truss Base Plate & Stabilizers:

Truss base plate and outriggers with stabilizers. The base plate provides a broad, stable foundation for a vertical truss section, often used to create a "truss totem" to support lighting fixtures or screens. The outriggers extend from the base to increase the footprint, and the adjustable feet (stabilizers) allow for leveling on uneven surfaces, ensuring the structure is plumb and secure.

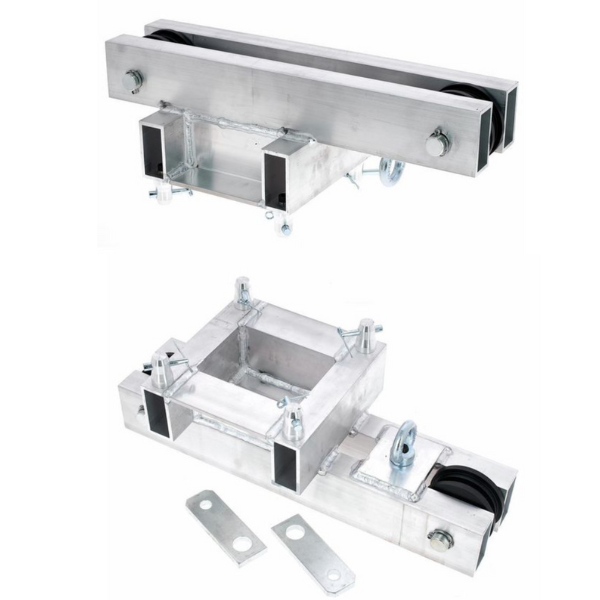

Sleeve Block & Top Pulley:

Sleeve block with a top pulley. The sleeve block is a key part of a "ground support" system. It's designed to slide vertically up and down a truss tower. A chain hoist, with its chain running through the top pulley, attaches to the sleeve block, allowing a horizontal truss grid (often called the "roof") to be raised and lowered safely. This system is crucial for building large, elevated structures for events.

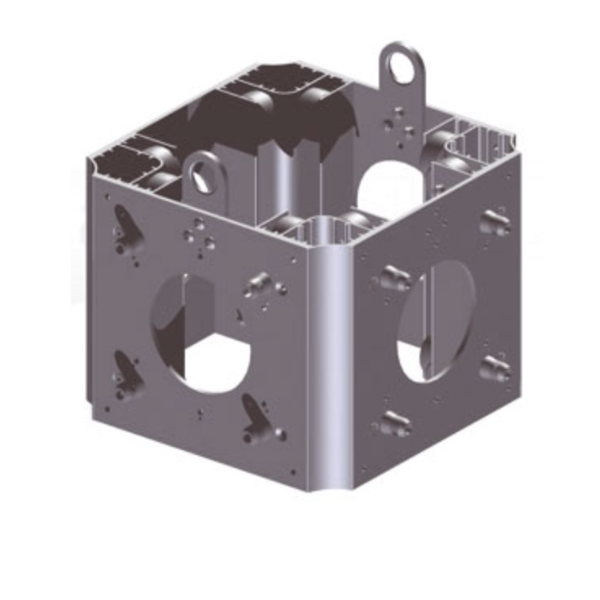

Multi-Directional Corner Block:

Multi-directional corner block, also known as a truss cube or 6-way corner block. This highly versatile component is used to connect truss sections at various angles and in multiple directions. Unlike a standard 90-degree corner, this cube allows for the creation of complex, three-dimensional truss structures, such as booths, arches, and custom shapes.

Note:

Price for single day hire.
Delivery charges may vary depending on the destination within Emirates.
Prices listed are exclusive of VAT.
Additional equipment needs to be added separately.

Specifications Reviews

Truss Base Plate & Stabilizers:

Stability: Provides a wide, stable footprint for vertical truss structures, preventing them from tipping.
Leveling: The adjustable feet (stabilizers) allow for precise leveling on uneven ground, which is critical for safety and the structural integrity of the rig.
Modularity: Designed to connect seamlessly to the base of standard truss sections.
Load Distribution: Spreads the weight of the structure and its attached equipment over a larger surface area.

Sleeve Block & Top Pulley

Lifting Mechanism: The central component of a ground support system, designed to interface with a chain hoist. The hoist's chain runs over the top pulley, allowing the attached horizontal truss grid to be raised or lowered safely from the ground.
Guided Movement: Features internal wheels or guides that ensure smooth, vertical movement up and down the main truss tower, preventing swaying or misalignment.
Versatility: Can be used with various sizes of main truss and is crucial for creating ground-supported stage roofs, lighting grids, and LED walls.
Safety: By allowing the main grid to be assembled at ground level, it significantly improves safety during setup and teardown.

Multi-Directional Corner Block (Truss Cube):

Versatility: As a 6-way connector, it allows for truss sections to be attached in multiple directions (e.g., up, down, left, right, forward, and backward), enabling the creation of complex, three-dimensional structures.
Flexibility: It's an essential element for building custom shapes like arches, booths, and intricate stage designs that go beyond simple linear or 90-degree corner configurations.
Structural Integrity: Provides a strong, rigid connection point that maintains the overall stability and safety of the truss structure, especially at crucial intersections.
Efficiency: Simplifies the design process for complex rigs by providing a single, universal connector for multi-directional joints.
